Power source |
220V/380 50Hz |
|
Air supply |
0.3-0.6Mpa |
|
Gas consumption |
<0.6m³/min |
|
Power (output) |
400W |
|
Overall dimensions(LxWxH) |
950*900*1600MM |
|
Production capacity |
2-3 molds/minute |
|
Number of demouldings |
Aluminum mold: 12pcs/mold Silicone lipstick: 10pcs/mold |
|
Fuselage Material |
Stainless steel (SUS304) |
|
Net machine weight |
280KG |

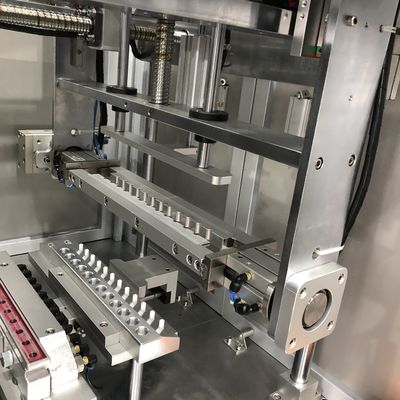

1,This machine is a general-purpose automatic demoulding machine, regular aluminum molds, silicone lipstick molds, beveled mouth aluminum molds can be used.
2,Using PLC interface to operate, you can directly set on the screen: take off the upper mold - clamping tube - inserting tube - taking off the mold - pulling out the mold and other parameters. -Pulling out the mold and other parameters.
3,It needs to be used with the corresponding size of lipstick tube.
4,Servo system control, screw-type movement, fast action, more accurate machine adjustment.
5,The volume is light and does not occupy space, pneumatic demolding, simple maintenance, easy to clean.
