1.This machine is suitable for cosmetics,powder cake,eye shadow,rouge,food,chemical and other industries.

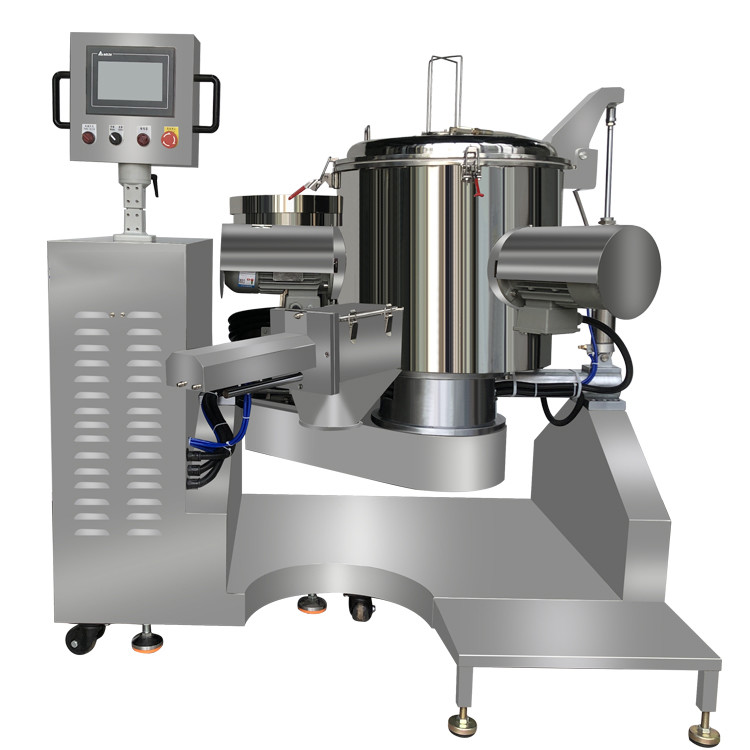

2.Three axis high-speed stir powder homogenizer using four mixing motor from the bottom of the barrel and side three angles at the same time, can fully the toner, the bead powder and oil mix evenly, is the production of cosmetics, powder, eye shadow, rouge, products, one of the indispensable equipment, the raw materials broken shear, collision mixing, make the composition quickly evenly mixed.With automatic fog oil spray, can set oil injection process, oil barrel can be heated, motor frequency conversion speed regulation, water cooling cycle, timing stirring powder and oil injection and other functions.
|
Supply voltage |
Three-phase 380V (power line 10 square 5-core line) |
|
Frequency converter brand |
delta |
|
Motor brand |
siemens |
|
Display screen |
Delta / Willen |
|
Aggregate capacity |
28KW |
|
Main motor power |
18.5KW |
|
Main motor speed |
2980 rpm (variable frequency speed regulation) |
|
Side motor power |
2.2kw * 3 |
|
Side motor speed |
2500 rpm (variable frequency speed regulation) |
|
Oil injection heating pipe power |
800W |
|
Open the cap cylinder |
Yad ker MA40 * 250 |
|
Out of powder cylinder |
Yad ker SC50 * 250 |
|
Bucket size volume |
50cm (d) * 55cm (h) is approximately 100L |
|
productive power |
Approximately 50kg / barrel |
|
Body material |
Stainless steel, 304 |
|
Machine installation requirements |
Power supply, gas source, circulating water, heat transfer oil |
|
Net weight of machine |
500kg |
|
Body size (L * W * H) |
1730*1520*1400MM |
