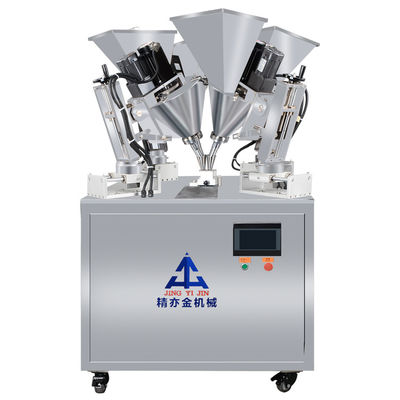

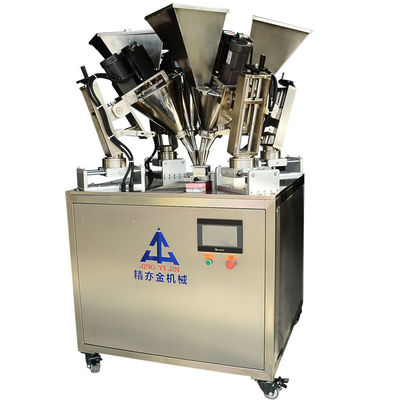

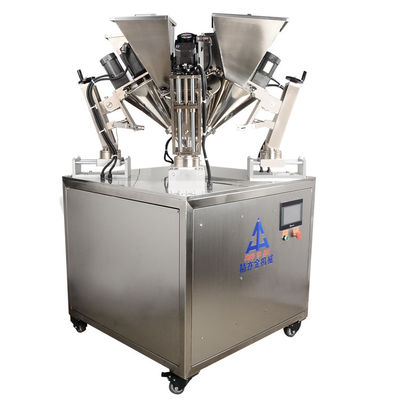

Description:
This machine is suitable for food, chemical, pharmaceutical products in powder and small particles can be filled, suitable for eye shadow powder, prickly heat powder, incense powder, all kinds of powder and so on.
Technical Parameters:
|
Power supply |
220V/50-60Hz |
|
Motor power |
60W*4个 |
|
Ordering range |
1-25G (single filling nozzle) |
|
Production capacity |
15,000-18,000/day (depending on grams and powder quality) |
|
Drum capacity |
20L*4pcs |
|
External Dimensions |
1000*1000*1750mm (LxWxH) |
|
Table height |
940mm |
|
Net weight |
200kg |
|
Filling error |
± 1% ,When filling 1-10 grams of powder (can be accurate to 0.1 grams) |
Uses and function:
1. Uses stepping motor drive, PLC control, screw filling, and human-machine interface operation. It has a very low failure rate, high stability, and precise filling volume.
2. Taiwan Wyland is used to make touch screens. Setting the filling and dosing parameters is simple with the control panel's PLC display.
3. Adjustable speed drum with stirring. Imported SUS304 stainless steel makes up the portion of the material in contact with the discharging mechanism's substance.

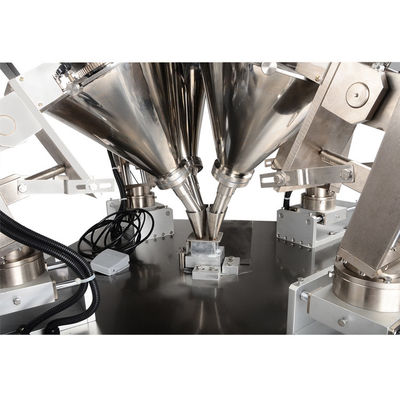

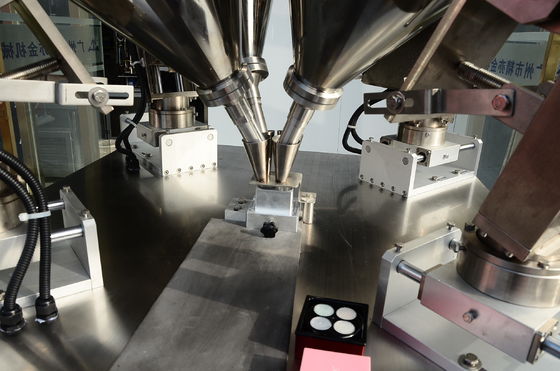

4. The powder hopper filling nozzle may move 360 degrees left and right and rise and fall in accordance with the package box hole position angle (up and down moving range: 20–30cm). Simple to use, low failure rate, color change, and maintenance.
